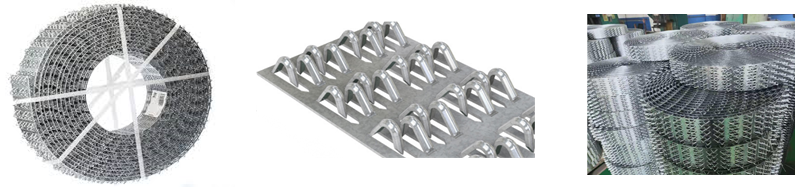

TRUSS NAIL PLATE AND ACCESSORIES

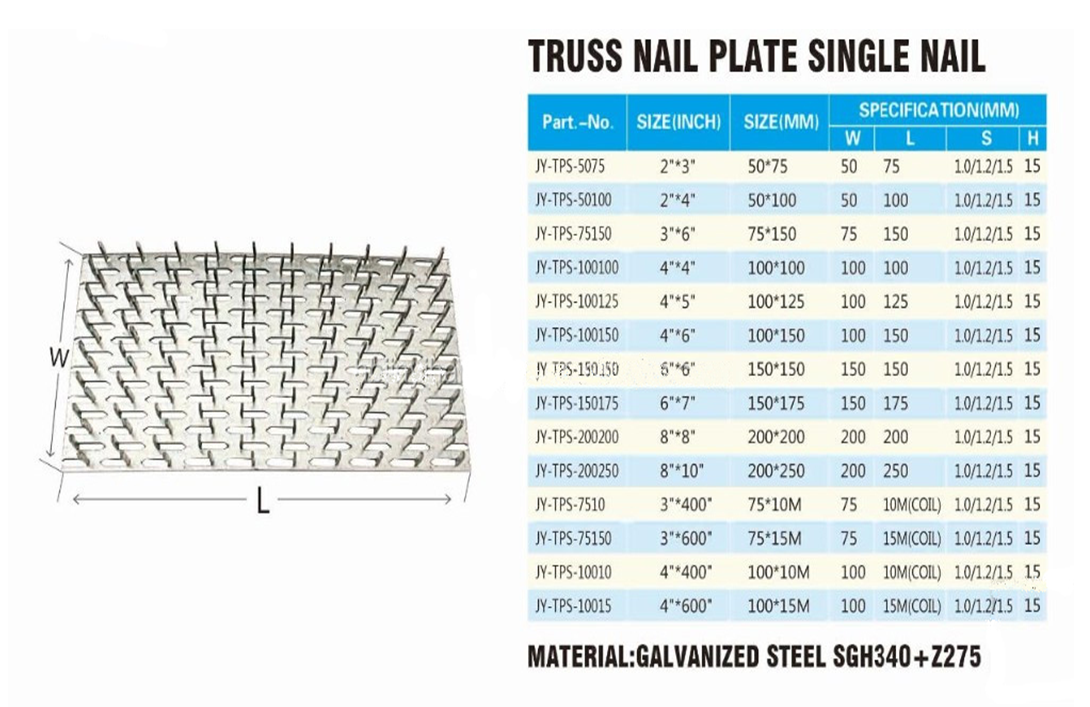

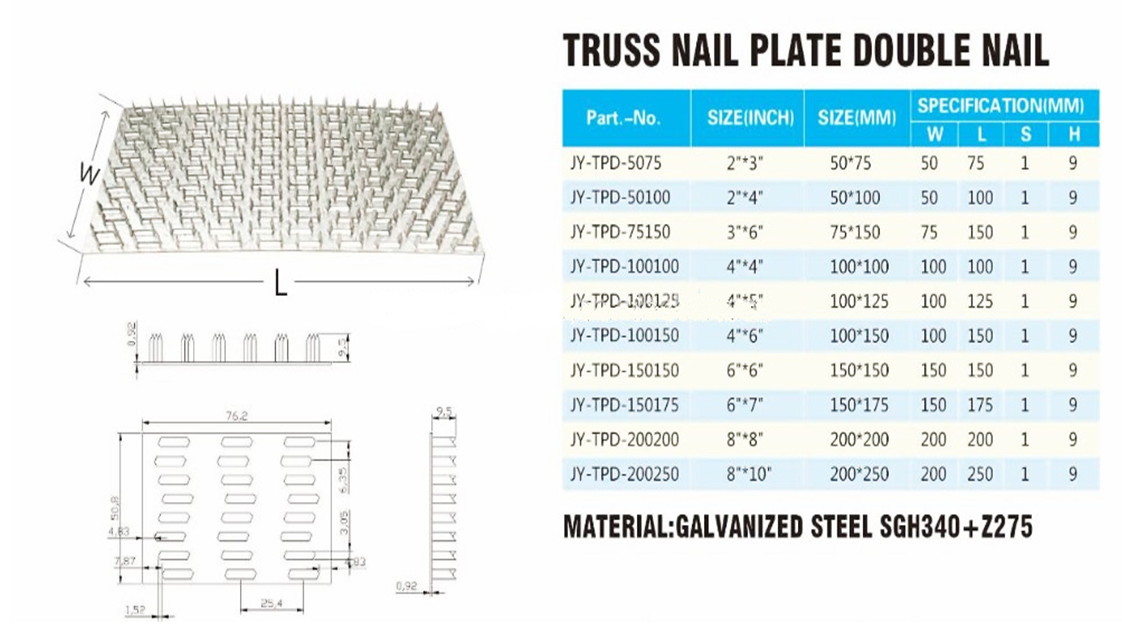

RUSS NAIL PLATE

FEATURES AND BENEFITS

EASY: Can be installed without any special gear or nails, only a hammer is required for install.

FAST: Hammer the truss nail plate and you are done.

VERSATILE: Multiple Applications from timber jointing,splicing, reinforcement and impact resistance.

KNUCKLE NAIL PLATES

FEATURES AND BENEFITS

EASY: Can be installed without any special gear or nails, only a hammer is required for install.

FAST: Hammer the knuckles and you are done.

VERSATILE: Multiple Applications from timber jointing, splicing, reinforcement and impact resistance.

SPECIFICATIONS

APPLICATION

Knuckle Nail plates are galvanized steel connectors with in-built, bent-up“knuckle” nails. These plates are ideal for many structural and non-structural timber jointing and timber protection uses.

Among the many uses of Knuckle Nailplates, the most common are jointing of  wall frames together on-site, on-site splicing of timber beams, reinforcement of corners of boxes and bins, and reinforcement of bolted joints (eg Cable Truss)[A1]

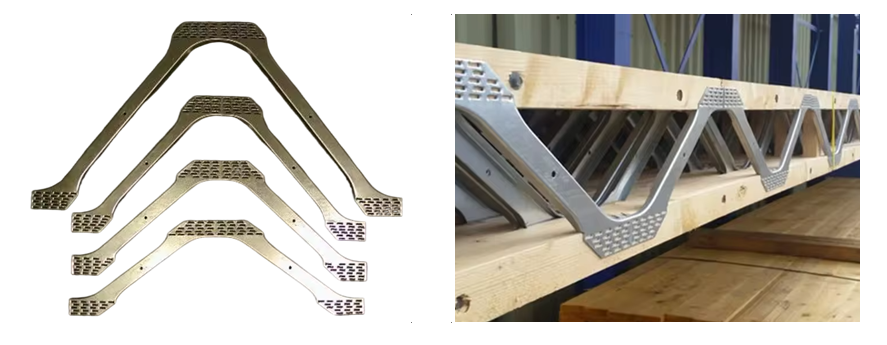

METAL WEB JOISTS

DESCRIPTION:
Name:Metal Web Joists
Specification：PS8-PS10-PS12
Material：Galvanized Steel DX51D-Z275-1.2mm

ADVANTAGE:
Open Web Design :This allows for easier more practical installation of services including waste water pipes,electrical cabling,heating pipes and other services. Also, no hole locating or drilling,limits any possibility of incorrect workmanship and reduces labour costs. We passivate the cross-section to prevent rusting.
Light Weight :The combination of smaller timber sections with the light weight metal web means ,the finished product is lighter than it’s timber equivalents.
Handling And Installation :The large bearing surface allows for speedy setting out of joists, improves joist stability when laying out joists and enables easier fixing of decking materials.
Long-Term Stability:The reduced sections used in the manufacture of the metal web means less shrinkage ,is experienced meaning a quieter and longer lasting floor system.
Improved Sound And Vibration :The metal web floor system allows for the installation of a rigid Strong back ,that reduces vibration and improves the overall performance of the floor.
