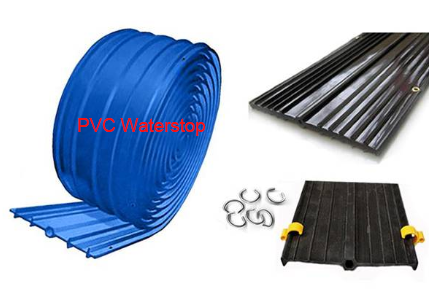

PVC waterstop, being embedded in the concrete joints, acts as a continuous watertight diaphragm to prevent any seepage of liquids in constructions joints which are subject to hydrostatic pressure. It is designed for expansion or contraction joint; meanwhile, it can accommodate lateral and transverse movements which make it capable to suit the moving joints.
Properties:
Physical properties | Test methods | Minimum value |
Water absorption | ASTM D-570 | 15% - 20% |
Tear resistance | ASTM D-624 | 300 psi |
Specific gravity | ASTM D-792 | 1.38 ± 0.05 |
Hardness shore A15 | ASTM D-2240 | 79 ± 3 |
Tensile strength | ASTM D-638 Type IV | 2000 psi |
Ultimate elongation | ASTM D-638 Type IV | 360% |
100% modulus | ASTM D-638 Type IV | 725 psi |
Low temperature brittleness (Tb) °F (°C) | ASTM D-746 | -35 (-37) passed |
Stiffness in Flexure | ASTM D-747 | 600 psi |
Ozone Resistance | ASTM D-1149 | No Failure |
Accelerated Extraction, CRD-572 | ||
Tensile | CDR - C- 572 | 1850 psi |
Elongation | CDR - C- 572 | 350% |
Effect of Alkali, CRD-572 | ||
Weight Change | CRD-572 | + 0.25% - 0.1% |
Change in Hardness Shore A | ASTM D-2240 | ± 5 points |
