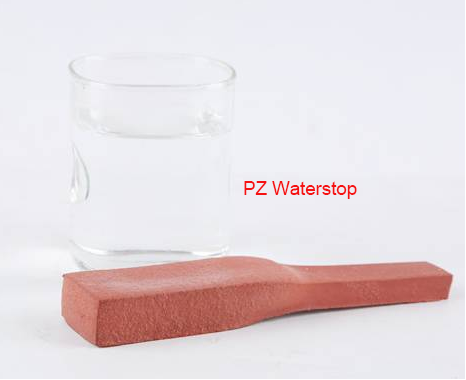

PZ waterstop is a new type hydrophilic watertight product manufactured of quality vulcanized rubber and other additives, which make it expansible with physical properties of rubber. Comparing with bentonite waterstop and butyl rubber waterstop.
Properties:
Physical properties | PZ-150 | PZ-250 | PZ-400 | PZ-600 | |
Hardness (shore A) | 42±7 | 42±7 | 45±7 | 48±7 | |
Tensile strength | 3.5 Mpa (min) | 3.5 Mpa (min) | 3 Mpa (min) | 3 Mpa (min) | |
Elongation | 450% (min) | 450% (min) | 350% (min) | 350% (min) | |
Expansion rate | 150% | 250% | 400% | 600% | |
Repeated water immersion test | Tensile strength | 3 Mpa (min) | 3 Mpa (min) | 2 Mpa (min) | 2 Mpa (min) |
Elongation | 350% (min) | 350% (min) | 250% (min) | 250% (min) | |
Expansion rate | 150% | 250% | 300% | 500% | |
Low temperature bending (-20°C*2h) | No crack | No crack | No crack | No crack | |
Sizes:
15 mm × 20 mm, 20 mm × 30 mm, 20 mm × 50 mm, 30 mm × 50 mm, 10 mm × 40 mm or others as your request.
