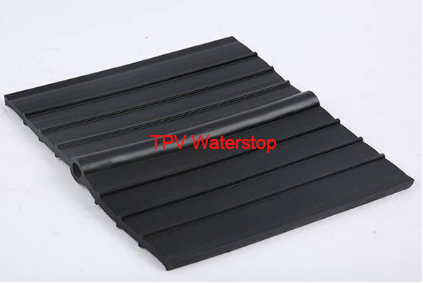

TPV waterstop, also known as TPER waterstop, made of an alloy of rubber and plastic, acts as a fluid-tight diaphragm with excellent mechanical properties and higher chemical resistance than traditional waterstops. Without plasticizer, stabilizer or fillers, the TPV waterstops will not leech out when exposed to chemical fluids as hydrophilic waterstops.
Properties:
|
Physical properties |
Test methods |
Minimum value |
|
Tear resistance |
ASTM D-624 |
278 psi |
|
Specific gravity |
ASTM D-792 |
0.96 |
|
Hardness shore A |
ASTM D-2240 |
90 ± 3 at 25°C (77°F) |
|
Tensile strength |
ASTM D-412 |
2300 psi |
|
Ultimate elongation |
ASTM D-412 |
530% |
|
100% modulus |
ASTM D-746 |
1000 psi |
|
Low temperature brittleness (Tb) °F (°C) |
ASTM D-746 |
-78 (-61) passed |
|
Compression set |
ASTM D-395 |
29% at 25°C (77°F) |
|
Ozone Resistance |
ASTM D-1171 |
No cracking at 500 pphm |
|
Chemical resistance |
ASTM D-471 |
Meet even exceed |
|
Drinking water safe |
NSF / ANSI Standard 61 |
Meet even exceed |
|
Green certification |
Green specification |
Meet even exceed |
