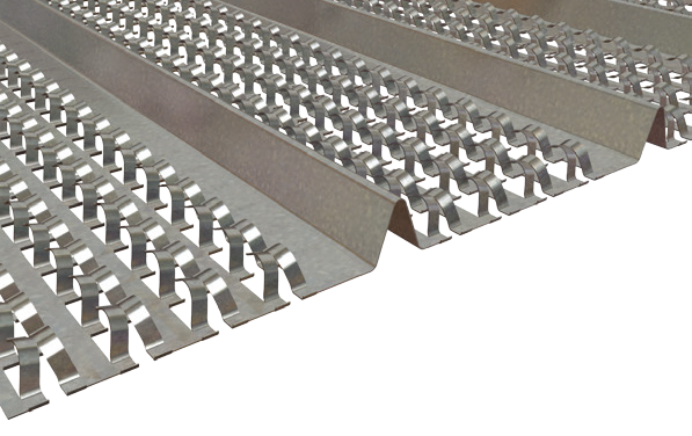

It is a jointless steel mesh stiffened by integral ribs. The continuous parallel V ribs are the main source of the hy rib mesh. Meanwhile, the steel mesh can be curved along the direction of V ribs.
The profile of the steel mesh, in combination with the hy-rib tangs, allow the hy rib mesh can be widely used as the carrier of plaster, stucco and fireproofing material and served as a permanent formwork for concrete.
BENEFITS
Allow steel bars passing through easily and binding continuously.
Hy rib mesh is a special kind of steel mesh with a large number of openings. It allows steel bars with a diameter of 12 mm and below pass through the mesh easily. For steel bars with a diameter of 12 mm above, cut through the mesh opening to allow the steel bar passing though and then make sure the cut part of the opening return to its original position. It can also be installed before binding steel bars and then make sure steel bars pass through the mesh opening.
SPECIFICATIONS:
Code | Rib height | Rib Distance | Thickness | Width | Length | Packing |
HR03 | 19-20 mm | 89-90 mm | 0.3 mm | 450 mm | 2000-3000 mm | Pallet |
HR04 | 19-20 mm | 89-90 mm | 0.4 mm | Pallet | ||
HR05 | 19-20 mm | 89-90 mm | 0.5 mm | Pallet | ||
HR 06 | 19-20 mm | 89-90 mm | 0.6 mm |
| Pallet |
