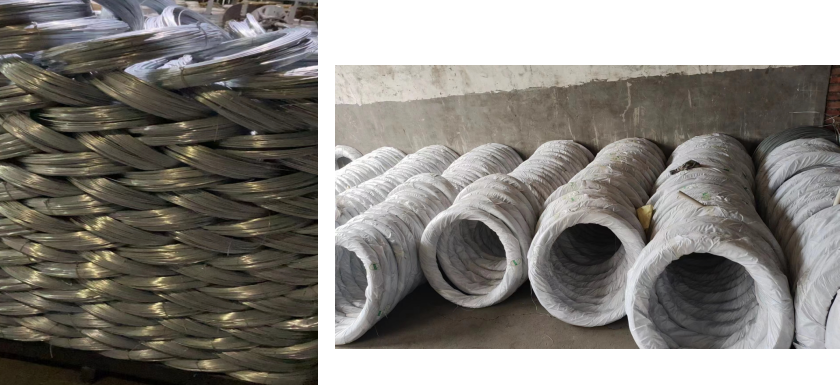

For galvanized iron wire,we have electro galvanized wire and hot dipped galvanized wire
1)HOT DIP GALVANIZED IRON WIRE
Hot dip galvanized ion wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling. It's mainly used in construction, handicrafts, woven wire mesh express way fencing mesh, packaging oi products and other daily uses.
Size range: BWG 8-BWG 22
Zinc coat:45-180g/m2
Tensile strength:350-550N/mm2
Elongation:10%
2)ELECTRO GALVANIZED IRON WIRE
Electro galvanized ion wire is made with choice mild steel,through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating,good corrosion resistance, firm zinc coating, etc.It's mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28
Zinc coat: 10-18g/m2
Tensile Strength:330---350 N/mm2
Elongation:10%
TECHNOLOGY DATA
Galvanized iron Wire Specifca jon | |||
Wire Gauge | SWG(mm) | BWG(mm) | Metric(mm) |
8 | 4.05 | 4.19 | 4.00 |
9 | 3.66 | 3.76 | 4.00 |
10 | 3.25 | 3.40 | 3.50 |
11 | 2.95 | 3.05 | 3.00 |
12 | 2.64 | 2.77 | 2.80 |
13 | 2.34 | 2.41 | 2.50 |
14 | 2.03 | 2.11 | 2.50 |
15 | 1.83 | 1.83 | 1.80 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.40 |
18 | 1.22 | 1.25 | 1.20 |
19 | 1.02 | 1.07 | 1.00 |
20 | 0.91 | 0.84 | 0.90 |
21 | 0.81 | 0.81 | 0.80 |
22 | 0.71 | 0.71 | 0.70 |
