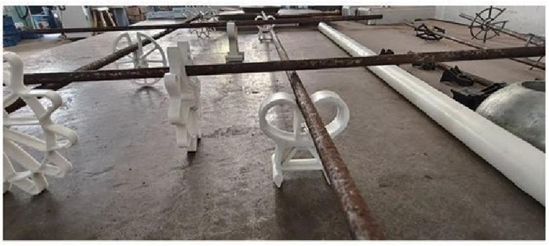

(1)REBAR SPACER WHEEL
A rebar spacer wheel (often just called a rebar chair or bolster) is a small, durable support
device used to hold reinforcing steel (rebar) in its correct position within a
concrete form before and during the concrete pour.The
"wheel" in the name typically refers to the circular, disc-like base
that provides a stable footing on the formwork.
WHAT IS ITS PURPOSE?
The primary function is to ensure proper concrete cover—the layer of concrete between the rebar and the
surface. This is critical for several reasons:
CORROSION
PROTECTION: It prevents moisture and de-icing
salts from reaching the rebar, which would cause it to rust, expand, and crack
the concrete.
STRUCTURAL
INTEGRITY: It ensures the rebar is embedded deep
enough within the concrete to act as a tensile strengthening component,
allowing it to bond properly with the concrete.
FIRE RESISTANCE: A sufficient
concrete cover protects the rebar from high
temperatures in a fire for a specified period.
CODE COMPLIANCE: Building
codes specify minimum cover requirements (e.g., 1.5
inches, 2 inches, 3 inches) for different structural elements (slabs, walls,
footings). Spacers are essential for meeting these codes.
FIRST MODEL:
|
Model
|
Length
(mm)
|
Cover of Concrete (mm)
|
For Bar Dia
(mm)
|
|
WWPH-A1
|
15
|
15
|
4-12
|
|
WWPH-A2
|
20
|
20
|
|
|
WWPH-A3
|
25
|
25
|
|
|
WWPH-A4
|
30
|
30
|
|
|
WWPH-A5
|
35
|
35
|
|
|
WWPH-A6
|
40
|
40
|
|
|
WWPH-A7
|
50
|
50
|
|
|
WWPH-A8
|
20
|
20
|
6-20
|
|
WWPH-A9
|
25
|
25
|
|
|
WWPH-A10
|
30
|
30
|
|
|
WWPH-A11
|
35
|
35
|
|
|
WWPH-A12
|
40
|
40
|
|
|
WWPH-A13
|
45
|
45
|
|
|
WWPH-A14
|
50
|
50
|
|
|
WWPH-A15
|
60
|
60
|
|
|
WWPH-A16
|
75
|
75
|
|
|
Other size on request
|
|||
SECOND MODEL:
|
Model
|
Cover
of Concrete
(mm)
|
For
Bar Dia
(mm)
|
|
|
WWPH-B1
|
20
|
6-8
|
|
|
WWPH-B2
|
25
|
6-12
|
|
|
WWPH-B3
|
30
|
6-8
|
|
|
Other size on request
|
|||
THIRD MODEL:
|
Model
|
Cover
of Concrete
(mm)
|
For
Bar Dia
(mm)
|
|
|
WWPH-D1
|
15
|
4-24
|
|
|
WWPH-D2
|
20
|
|
|
|
WWPH-D3
|
25
|
|
|
|
WWPH-D4
|
30
|
||
|
WWPH-D5
|
35
|
|
|
|
WWPH-D6
|
40
|
|
|
|
WWPH-D7
|
50
|
|
|
|
WWPH-D8
|
60
|
|
|
|
WWPH-D9
|
70
|
||
|
WWPH-D10
|
80
|
||
|
Other size on request
|
|
||
(2)CONCRETE
PLASTIC REBAR CLIP SPACER
A Concrete Plastic Rebar Clip Spacer is a modern, efficient, and highly reliable solution for positioning rebar. The integrated clip is its key advantage, ensuring the rebar stays exactly where it's needed to create a strong, durable, and long-lasting concrete structure.
|
Item No. |
Size |
Pcs/bag |
Bags/pallet |
Size of pallets |
Pallets/20' |
Pallets/40' |
|
GKPRS-1 |
3/4-1" |
200 |
90 |
100*90*114 |
24 |
52 |
|
GKPRS-2 |
1-1/2"-2" |
200 |
72 |
125*110*112 |
16 |
36 |
|
GKPRS-3 |
1-1/2"-2" |
200 |
60 |
94*134*112 |
20 |
40 |
|
GKPRS-4 |
2"-2-1/2" |
200 |
30 |
112*89*115.5 |
24 |
52 |
|
GKPRS-5 |
2-1/2"-3" |
200 |
20 |
110*70*110 |
32 |
64 |
|
GKPRS-6 |
3"-3-1/2" |
200 |
20 |
110*80*115.5 |
28 |
56 |
|
GKPRS-7 |
3-1/2"-4" |
200 |
20 |
112*90*116 |
24 |
52 |
|
GKPRS-8 |
4"-4-1/2" |
180 |
20 |
108*100*116 |
20 |
44 |
|
GKPRS-9 |
4-1/2"-5" |
100 |
14 |
110*70*108 |
32 |
64 |
|
GKPRS-10 |
5-1/2"-6" |
100 |
28 |
124*113*115 |
16 |
36 |

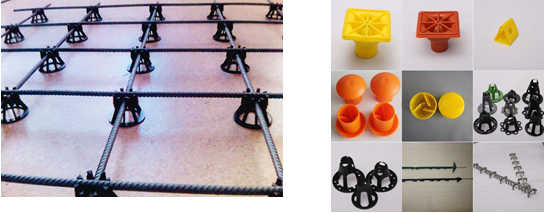

Plastic Rebar Chair Spacer is widely used in reinforced concrete construction to support and position rebar,ensuring the correct concrete cover thickness between rebar and formwork.
It is commonly applied in slabs,floors,foundations,and precast concrete elements.These spacers prevent rebar from sagging or shifting during pouring,helping to achieve structural durability and safety.
(3)PLASTIC REBAR CHAIR SPACER
|
Model
|
Cover
of Concrete(mm)
|
For
Bar Dia(mm)
|
|
|
WWPH-G1
|
70
|
8-32
|
|
|
WWPH-G2
|
85
|
8-32
|
|
|
WWPH-G3
|
105
|
10-40
|
|
|
WWPH-G4
|
120
|
10-40
|
|
|
WWPH-G5
|
150
|
10-40
|
|
|
WWPH-G6
|
170
|
10-40
|
|
|
Other size
on request
|
|
||
|
|
|||
