Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.

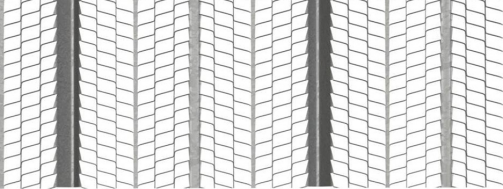

Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering.
depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique.
BENEFITS:
It offers great stiffness, high tensile strength and is not easy to break.

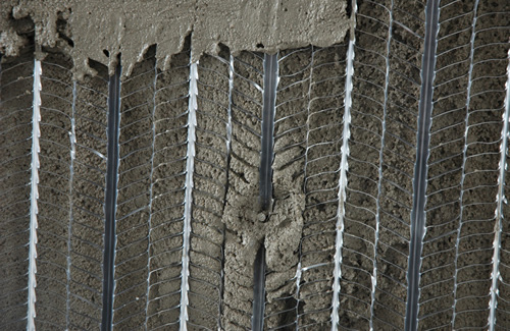

It provides ample keying for plastering.
Flexible structure can be bent and shaped at will.
Easy construction, it allow you save your time greatly while offering an even plastering surface.
Lightweight, easy to cut, bind and nail onto the keel light steel frame for easy and fast construction.
SPECIFICATION:
Code | Depth | Sheet size | Thickness | Materials |
YJ-HR9 | 3/8" | 27”×97" | 3.4 LB/sq yard | Galvanized |
YJ-HR | 3/4" | 27.5”×97" | 5.4 kg/sheet | Galvanized |
YJ-HR3 | 19-20 mm | 200 mm width | 0.4-0.5 mm | Galvanized |
YJ-HR4 | 19-20 mm | 300 mm width | 0.4-0.5 mm | Galvanized |
YJ-HR5 | 19-20 mm | 400 mm width | 0.4-0.5 mm | Galvanized |
YJ-HR6 | 19-20 mm | 500 mm width | 0.4-0.5 mm | Galvanized |
YJ-HR7 | 19-20 mm | 600 mm width | 0.4-0.5 mm | Galvanized |
YJ-HR8 | 19-20 mm | 700 mm width | 0.4-0.5 mm | Galvanized |
YJ-MR7 | 10 mm | 600×2200-2500 mm | 0.25-0.5 mm | Galvanized |
YJ-FR7 | 4 mm | 600×2200-2500 mm | 0.25-0.5 mm | Galvanized |
